ZLB-Basket Granulator

Efficient Wet Extrusion Granulator

Moist powder is pushed through a mesh by rotating blades during extrusion to form quality granules. The Basket Granulator offers steady granulation rates, visually appealing particles, an automated discharge process and high output levels.

Input: Moist powder mixed with a binder
Output: Wet cylindrical granules
Type: Extrusion Granulation, Wet Granulation
Additional Feature: Mixing

f 𝕏 in

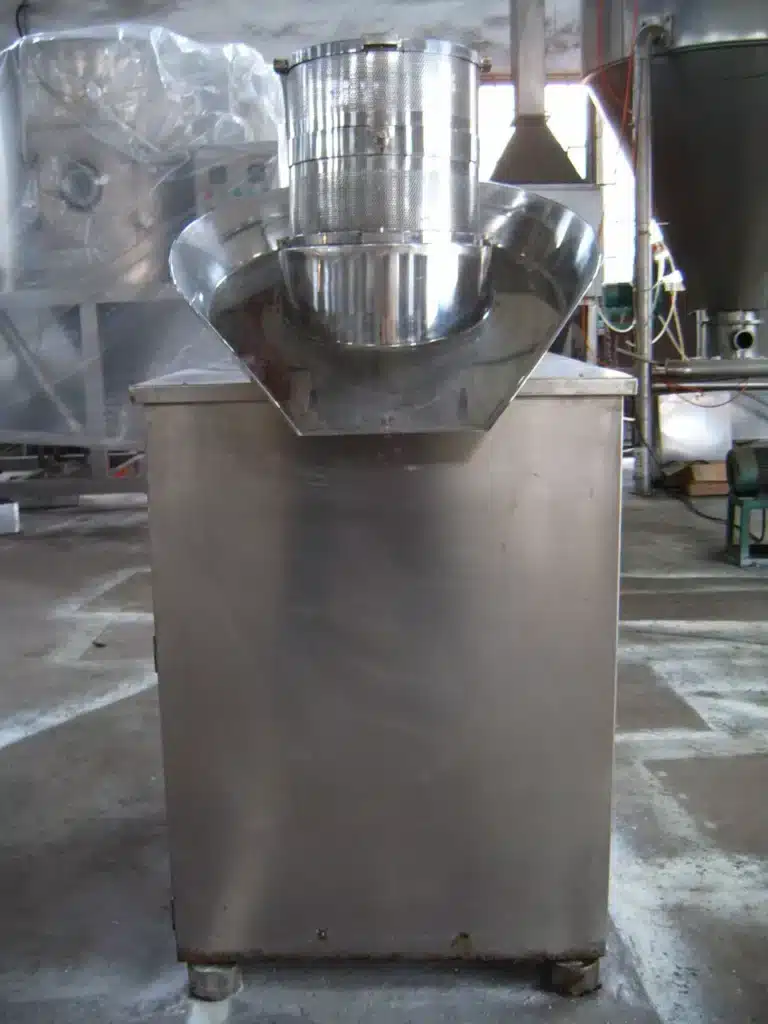

A Basket Granulator for High-Output Wet Extrusion

SINOTHERMO's basket granulator pushes moist powder mixed with binder through a mesh basket using rotating blades, extruding it into cylindrical wet granules. The design supports steady granulation rates, automated discharge and high output for pharmaceutical, chemical and food producers.

Rotating blades push the moist mass through a mesh basket, shaping it into cylindrical granules as it passes through.
The extrusion action produces granules with a uniform, visually consistent shape and surface.
Granules discharge automatically from the basket, supporting continuous operation without manual removal between batches.
Sized for high-output granulation runs, suiting production-scale rather than small-batch processing.
Processes moist powder pre-mixed with binder into uniform cylindrical granules ready for downstream drying.

A Basket Granulator for High-Output Wet Extrusion

Model

Model	ZLB-250	ZLB-300B	ZLB-300D
Cutter Size (mm)	250	300	300
Particle Diameter (mm)	Φ2-2.2 (adjustable per user requirements)	Φ1.2-3 (adjustable per user requirements)	0.5-6 (adjustable per user requirements)
Outer Dimensions (mm)	700×540×1300	880×640×1300	1300×800×1200
Motor Power (kw)	3	4	7.5-6
Weight (kg)	350	400	780
Production Capacity (kg/h)	100-200	140-400	300-600
