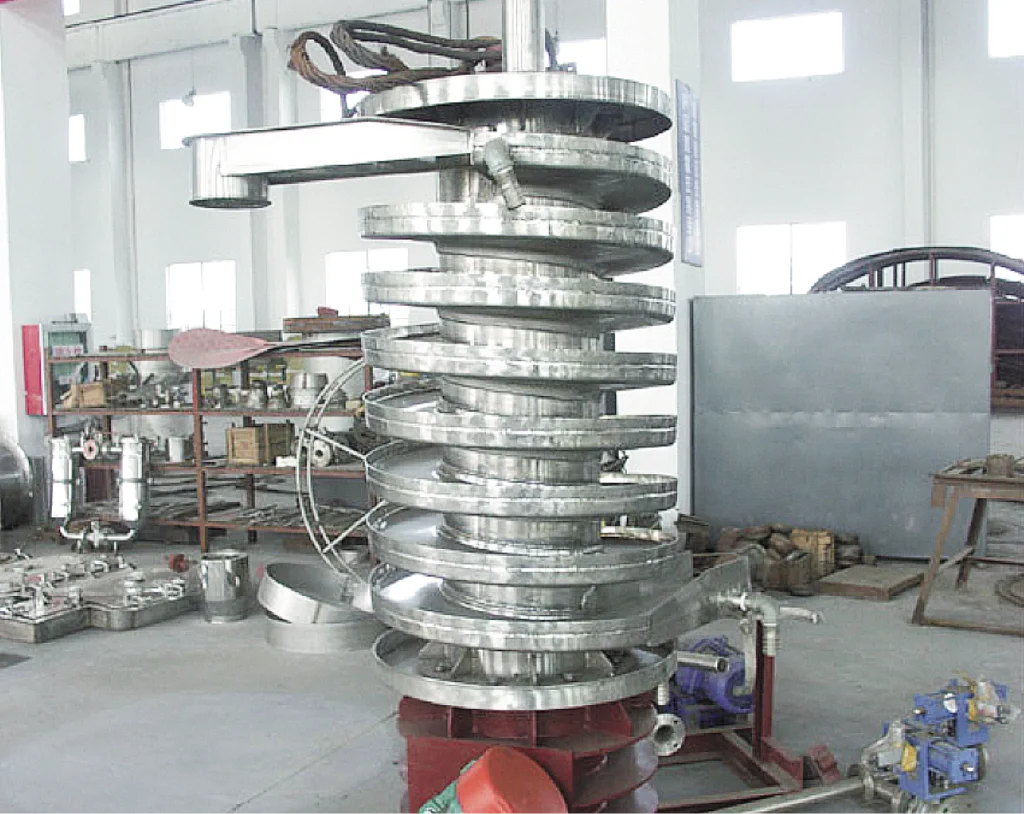

LZG-Spiral Vibrating Dryer

Method for Drying Pellets and Granules

The Spiral Vibrating Dryer dries materials by using centrifugal vibration and gravity to move them in a bouncing path from top to bottom along a spiral bed. Fresh hot air enters from below, interacting thoroughly with the material for heat and mass transfer before leaving through the top — ensuring even drying.

Input: Granular, short-rod and spherical solids with < 20% moisture
Output: Granules, short rods and spheres with 3%–5% moisture
Temperature: Inlet air temperature < 100°C
Additional Feature: Cooling

f 𝕏 in

A Spiral Vibrating Dryer for Continuous Pellet and Granule Drying

SINOTHERMO's spiral vibrating dryer uses centrifugal vibration and gravity to move granular, short-rod and spherical solids in a bouncing path down a spiral bed, while fresh hot air rises from below for heat and mass transfer. The design suits continuous drying of pellets and granules within a compact vertical footprint.

Centrifugal vibration and gravity move material in a bouncing pattern down the spiral bed, keeping particles in constant motion.
Fresh hot air enters from below and moves upward through the descending material, promoting thorough heat and mass transfer.
The spiral bed design fits drying capacity into a smaller floor area than a horizontal equivalent would require.
Handles granular, short-rod and spherical solids, moving them gently without excessive impact or breakage.
Reduces feed moisture from up to 20% down to a final 3–5% moisture content, with inlet air kept below 100°C.
An integrated cooling stage brings dried material down to handling temperature within the same unit.
