FZG-Static Vacuum Cabinet Dryer

Vacuum Dryer with Pulse Back-Blow Feature

Equipped with large-area, hollow heating tubes, this dryer efficiently heats materials on trays. Ideal for low-temperature operation under vacuum, it handles flammable, explosive, and heat-sensitive materials, effectively preserving their original form and properties.

Input: Liquids, Slurries, Pastes and Thick Materials
Output: Lump Solids with 3%–5% moisture content
Temperature: Heat source temperature < 100°C

f 𝕏 in

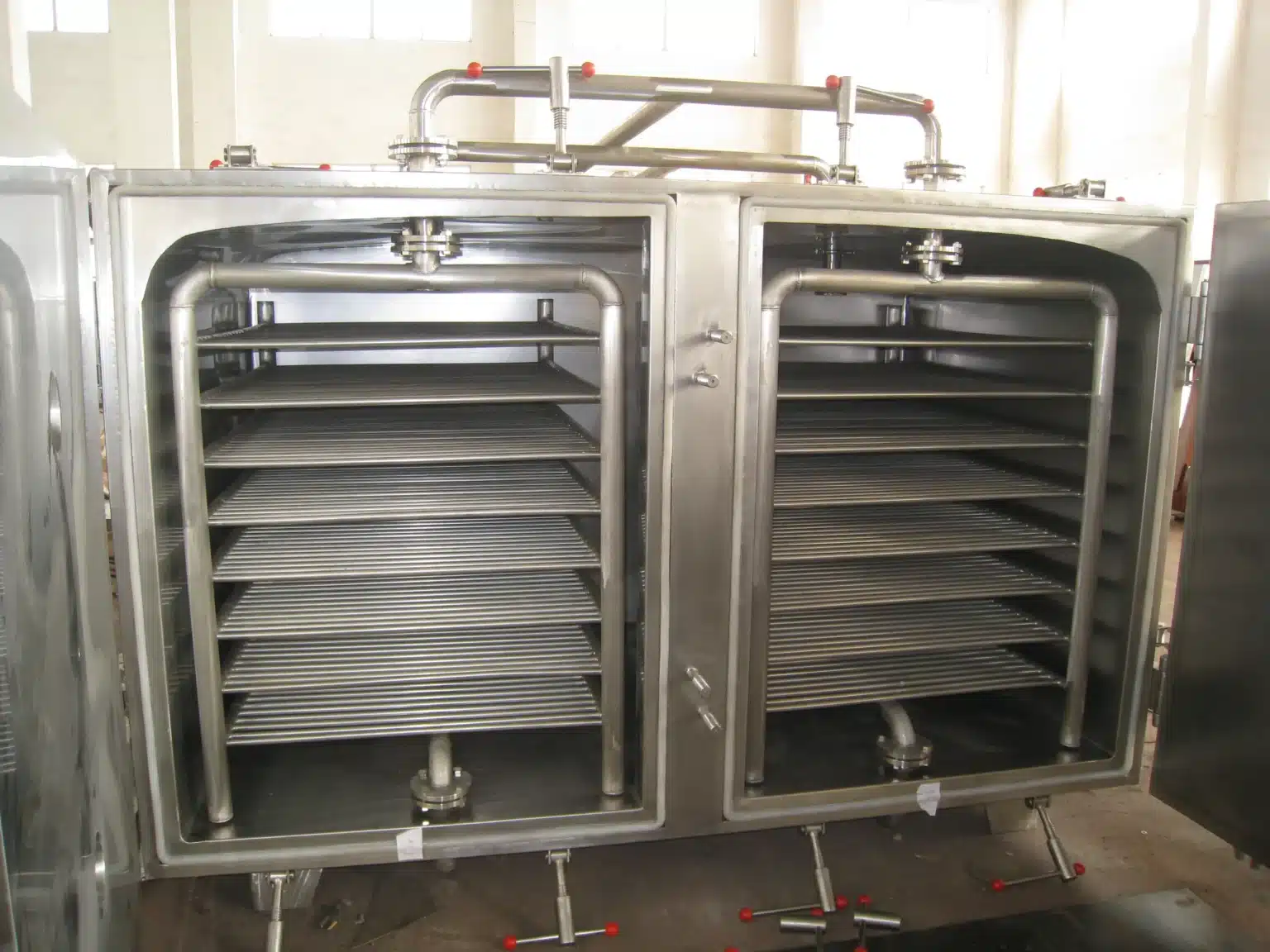

A Static Vacuum Tray Dryer for Low-Temperature, Gentle Drying

SINOTHERMO's static vacuum cabinet dryer — also called a vacuum tray or vacuum shelf dryer — dries liquids, slurries and pastes spread on heated trays inside a sealed vacuum chamber. Drying under vacuum lets water evaporate at low temperature (heat source below 100°C), so it safely handles heat-sensitive, flammable and explosive materials for pharmaceutical, chemical and food producers.

Vacuum lowers the boiling point, so materials dry with a heat source below 100°C — protecting active ingredients, color and structure that hot-air drying would damage.
Hollow heating tubes conduct even, contact heat across every tray, giving uniform drying to a stable 3–5% final moisture.
The oxygen-poor vacuum environment safely dries flammable, explosive and easily oxidized materials that cannot be dried in air.
A pulse back-blow feature clears the filter and keeps the chamber running efficiently through long batches with minimal downtime.
Static tray drying leaves material undisturbed and fully enclosed, ideal for high-purity pharmaceutical and fine-chemical products.

A Static Vacuum Tray Dryer for Low-Temperature, Gentle Drying

Model

Model	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
Drying Chamber Inner Dimensions	Φ600×976	Φ800×1247	Φ1000×1527	Φ1400×2054	1500×1060×1220	1500×1400×1220	1500×1800×1220
Drying Chamber Outer Dimensions	1135×810×1024	1700×1045×1335	1693×1190×1500	2386×1675×1920	1513×1924×1720	1513×1924×2060	1513×1924×2500
Number of Shelf Layers	4	4	6	8	5	8	12
Layer Spacing	82	82	102	102	122	122	122
Tray Dimensions	310×600×45	520×410×45	520×410×45	460×640×45	460×640×45	460×640×45	460×640×45
Number of Trays	4	8	12	32	20	32	48
Pressure in Shelf Pipes	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Shelf Operating Temperature	35-150	35-150	35-150	35-150	35-150	35-150	35-150
With Condenser, Vacuum Pump Model, Power	2X-15A-2.2KW	2X-30A-3KW	2X-30A-3KW	2X-70A-5.5KW	2X-70A-5.5KW	2X-70A-5.5KW	2X-90A-7.5KW
Without Condenser, Vacuum Pump Model, Power	SK-0.8-2.2KW	SK-2.7-4KW	SK-3-5.5KW	SK-6-11KW	SK-3-5.5KW	SK-6-11KW	SK-6-11KW
Drying Oven Weight	250	600	800	1400	1400	2100	3200

Water-ring vacuum pumps are used in series with mechanical booster pumps to improve vacuum degree.
No-load vacuum in chamber: -0.09 to -0.096 MPa.
Water vaporization rate: 7.2 kg H₂O/(m²·h) at -0.1 MPa and 110°C heating temperature.
