KJG-Vacuum Paddle Dryer

Vacuum Conduction Dryer with Hollow Paddle Agitator

The Vacuum Paddle Dryer stands out with its large heating surface and wedge-shaped hollow paddle agitators, outperforming conventional rake vacuum dryers in heating effectiveness. It moves and heats materials while operating under vacuum at low temperatures, making it suitable for handling flammable, explosive, organic-solvent-based and heat-sensitive materials.

Input: Liquids, Slurries, Pastes, Mashes
Output: Powder with 3%–10% moisture content
Temperature: Heat source temperature range of 50°C to 200°C
Additional Feature: Mixing, Mild Crushing

f 𝕏 in

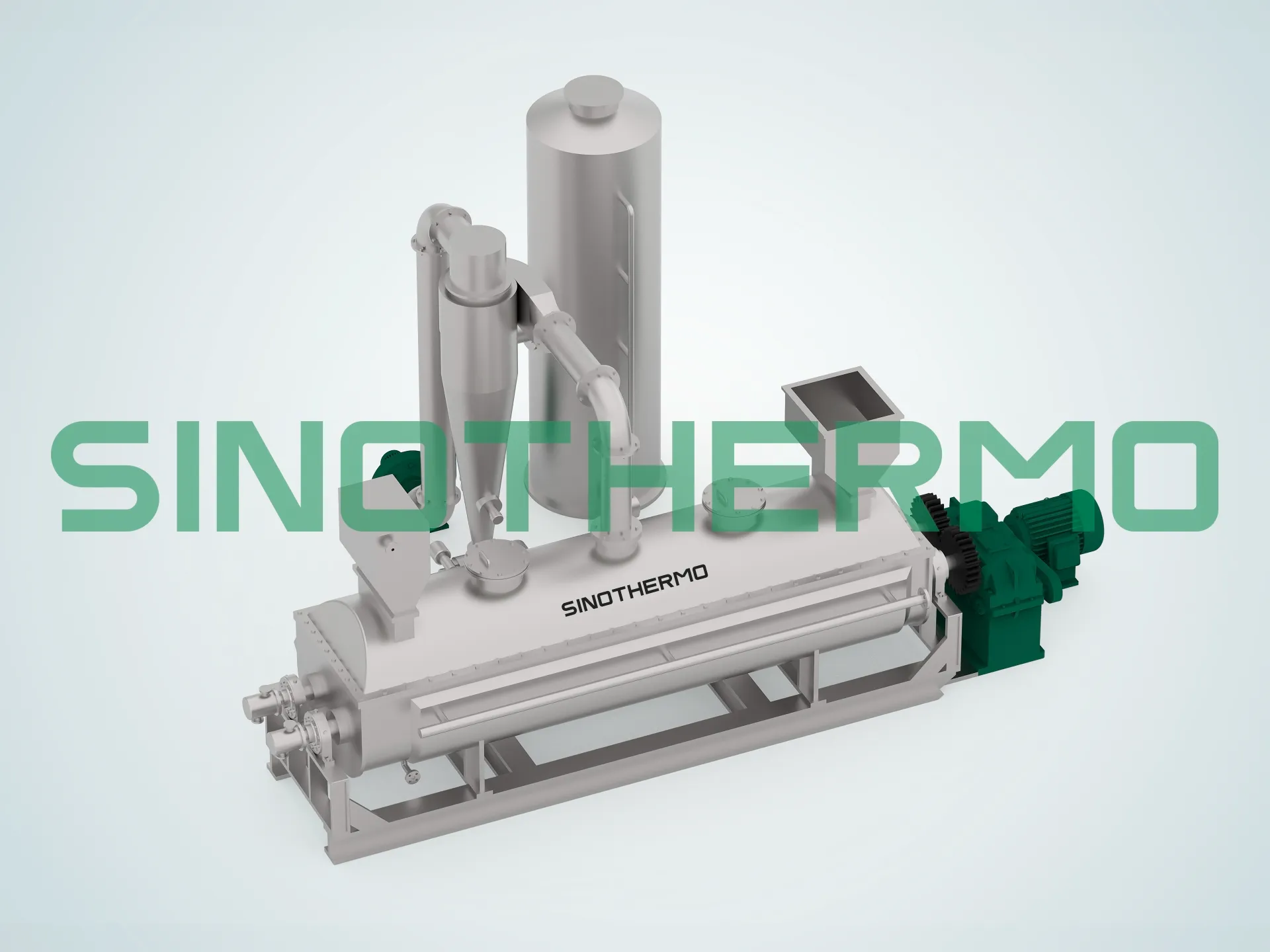

A Vacuum Paddle Dryer with Hollow Wedge Agitators

SINOTHERMO's vacuum paddle dryer — a hollow paddle, indirect-heat conduction dryer — dries liquids, slurries, pastes and mashes into powder using heated, wedge-shaped hollow paddles that both agitate and heat the material under vacuum. The heated paddles add conduction surface beyond a rake dryer, so drying is faster and more efficient for flammable, solvent-wet and heat-sensitive products.

Wedge-shaped hollow paddles carry heating medium inside, adding conduction surface on top of the jacket so materials heat and dry faster than in a conventional rake vacuum dryer.
The rotating paddles constantly mix and turn the batch, renewing the heated surface, preventing crusting and giving uniform drying to 3–10% moisture.
Vacuum lowers the evaporation point so drying runs at a 50–200°C heat source, protecting heat-sensitive products and enabling organic-solvent recovery.
The sealed, low-oxygen vacuum shell safely dries flammable, explosive and solvent-laden materials that cannot be dried in open air.
The wedge paddle profile provides mild crushing and a self-wiping action that limits buildup and delivers free-flowing powder.

A Vacuum Paddle Dryer with Hollow Wedge Agitators

Model

Model	KJG3	KJG9	KJG13	KJG18	KJG29	KJG41	KJG52	KJG68	KJG81	KJG95	KJG110
Heat Transfer Area (m²)	3	9	13	18	29	41	52	68	81	95	110
Effective Volume (m³)	0.06	0.32	0.59	1.09	1.85	2.8	3.96	5.21	6.43	8.07	9.46
Rotation Speed Range (rpm)	15-30	10-25	10-25	10-20	10-20	10-20	10-20	10-20	5-15	5-15	5-10
Power (kW)	2.2	4	5.5	7.5	11	15	30	45	55	75	95
Body Width A (mm)	306	584	762	940	1118	1296	1476	1652	1828	2032	2210
Total Width B (mm)	736	841	1066	1320	1474	1676	1854	2134	1186	2438	2668
Body Width C (mm)	1956	2820	3048	3328	4114	4724	5258	5842	6020	6124	6122
Total Length D (mm)	2972	4876	5486	5918	6808	7570	8306	9296	9678	9704	9880
Inlet/Outlet Distance E (mm)	1752	2540	2768	3048	3810	4420	4954	5384	5562	5664	5664
Center Height F (mm)	380	380	534	610	762	915	1066	1220	1220	1220	1220
Total Height H (mm)	762	838	1092	1270	1524	1778	2032	2362	2464	2566	2668
Steam Inlet N (inch)	3/4	3/4	1	1	1	1	1½	1½	1½	1½	2
Water Outlet O (inch)	3/4	3/4	1	1	1	1	1½	1½	1½	1½	2
