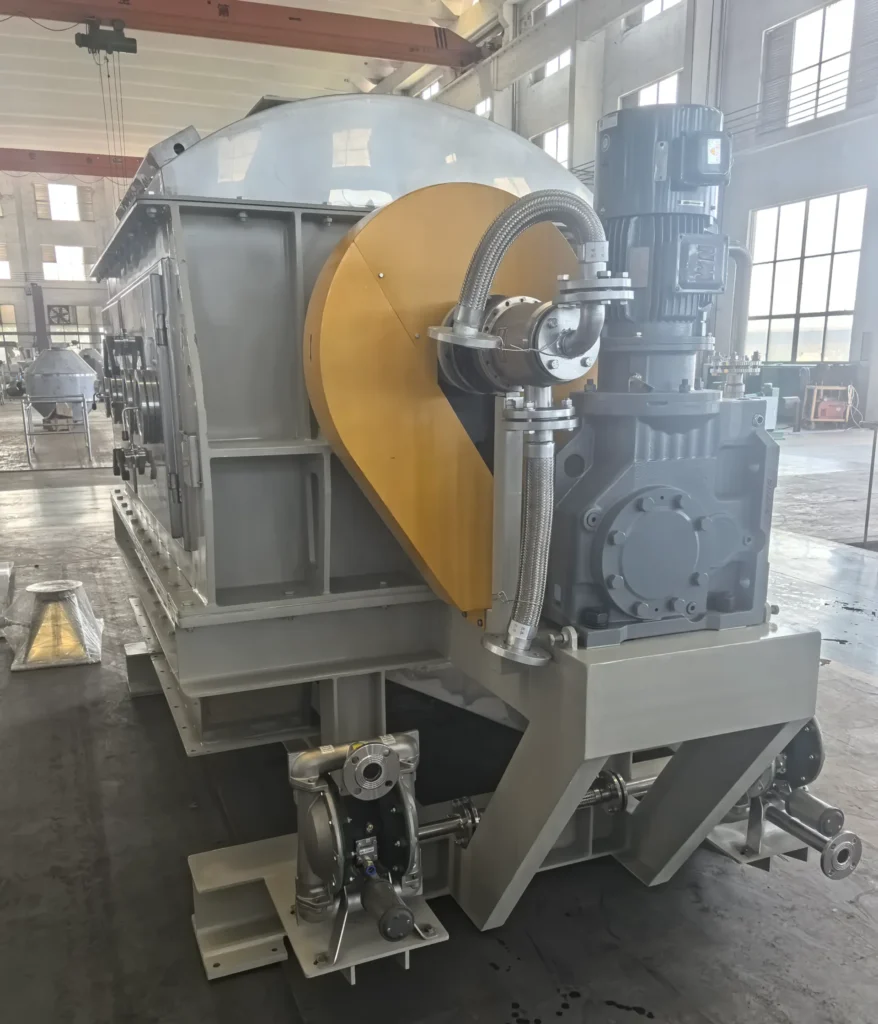

CD Dryer
Continuous Drying for Liquid and Paste-like Materials
The CD Dryer is designed for continuous drying of liquids and pastes. Utilizing indirectly heated discs, the dryer efficiently transfers heat to the material, creating a thin layer for rapid evaporation. This method ensures effective drying and consistent product quality.
- Input
- Liquid and Pasty Materials
- Output
- Dried Solids (flake or powder, depending on application)
- Heat Transfer Coefficient
- Overall heat transfer coefficient: 2,300W/m²k
- Thermal Efficiency
- 80 to 85% thermal efficiency
Efficient and Versatile Drying Technology
The CD Dryer is renowned for its efficient heat transfer and versatile drying capabilities, making it an excellent choice for a wide range of applications. Its compact design saves space and simplifies maintenance, resulting in a cost-efficient process.
Dual-Sided Disc Conduction
The CD Dryer dries liquid materials indirectly through heat conduction, using both sides of its hollow disks as heat-transfer surfaces. This doubles the effective drying area within a single unit, delivering consistent evaporation and uniform product quality across the full batch.
Compact Footprint, Low Energy Loss
With the same heat-transfer surface, the CD Dryer occupies significantly less floor space than a comparable drum dryer. Its ideal thermal-conductivity properties and low heat losses translate into 80–85% thermal efficiency — saving both space and running cost.
Built for Chemical Processing & Easy Monitoring
Suited to virtually every branch of chemical process engineering, the CD Dryer features a moveable hood made of laminated safety glass, letting operators observe the drying process directly while keeping the chamber sealed and safe.
Model
| Model | CDD-904 | CDD-906 | CDD-908 | CDD-910 | CDD-912 | CDD-1306 | CDD-1308 | CDD-1310 | CDD-1312 | CDD-1316 |
|---|---|---|---|---|---|---|---|---|---|---|
| Disk Diameter (mm) | 900 | 900 | 900 | 900 | 900 | 1300 | 1300 | 1300 | 1300 | 1300 |
| Number Of Disks | 1~12 | 1~12 | 1~12 | 1~12 | 1~12 | 6~16 | 6~16 | 6~16 | 6~16 | 6~16 |
| Heat Transfer Area (m²) per disk | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Total Heat Transfer Area (m²) | 1~12 | 1~12 | 1~12 | 1~12 | 1~12 | 12~32 | 12~32 | 12~32 | 12~32 | 12~32 |
| Width of Dimensions (mm) | 2430 | 2,750 | 3,120 | 3,510 | 3,950 | 3,660 | 4,150 | 4,600 | 5,000 | 5,750 |
| Height of Dimensions (mm) | 2860 | 2860 | 2860 | 2860 | 2860 | 4200 | 4200 | 4200 | 4200 | 4200 |
| Depth of Dimensions (mm) | 1900 | 1900 | 1900 | 1900 | 1900 | 2360 | 2360 | 2360 | 2360 | 2360 |
Applications
China Clay
Suited for drying china clay slurries, delivering efficient drying results with minimal product losses during operation.
Resins
Efficiently dries resins with precise temperature control, minimizing material degradation and maintaining product properties effectively.
Gelatin
Offers a gentle drying solution, preserving its intrinsic properties, ensuring a higher degree of product quality overall.
Salt Solutions
Provides a reliable solution for drying salt solutions, ensuring high purity and efficient operation across various industries.
Pharmaceutical
Ideal for drying ingredients that are sensitive to heat — the CD Dryer is a perfect choice.
Wastewater
Efficiently dries wastewater, reducing volume for easier disposal and contributing to environmental protection efforts.
Pigments
Excels in drying pigments in suspension, ensuring uniform particle size and color consistency for quality products.
Ceramics
In ceramics and mineral processing applications it effectively dries materials to maintain product consistency and quality.
